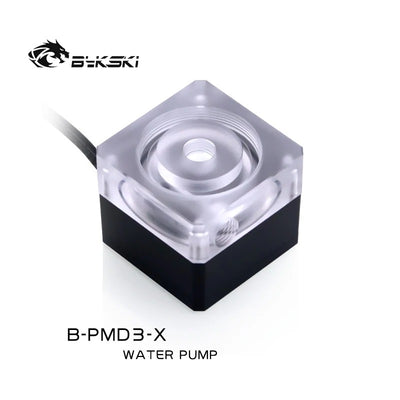

The Bykski Mini DDC Pump Reservoir Combo w/ Armor is a complete pump / reservoir kit. The extreme specifications of this DDC are unmatched and make for a very powerful and compact solution for your liquid cooling loop.  The clear PMMA top allows you to see fluid colors through it.  With industry standard G1/4 ports, this kit can accept most fittings. The pump is powered by a standard 4-pin power connector and monitor line.

Features

• All Black Cables
• PWM Enabled
• Superior 12 Volts DC convenience: plugs into the computer power supply

Specifications

• Top Color: Clear
• Top Material: Clear PMMA
• Heatsink Material: Aluminum
• Pump Model:B-PMD3-X
• Power: Standard 4 pin power connector and a PWM 4-Pin header
• Voltage Range: 10V - 15V DC
• MTBF (Mean Time Between Failure):50,000 hours equivalent to 5 years lifetime
• Maximum discharge:~ 132 GPH (600 LPH)
• Max RPM: 5000
• Temperature: 45°C @ 4000RPM

• Dimensions: 62 x 62 x 102.6mm
• Performance will vary based on cooling loop dynamic

Included Parts

• 1x Bykski Mini DDC Pump Reservoir Combo w/ Armor
• Secondary Pics show Optional Mounting Solutions (NOT Included)

Warnings

Use of caustic and/or abrasive coolant will void your warranty and may cause your pump to fail.
Not responsible for any hardware damage. Use at your own risk.

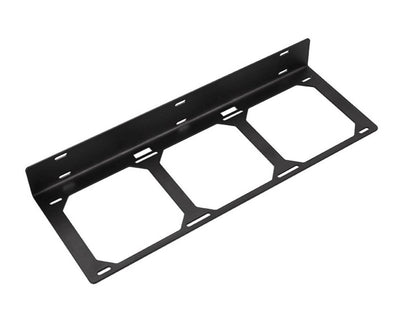

The Radiator DIY Mounting Bracket - 360mm allows you to mount your dual 120mm radiator anywhere you like.  Made of steel, this sturdy bracket has slotted mounting holes accommodating a wide selection of radiators.

Features

• Can be used for external mount
• Slotted mount holes

Specifications

• Model: B-ST-3FN
• Brand: Bykski
• Color: Black

Compatibility

• Triple120mm Radiators

Parts Included

• 1x Radiator DIY Mounting Bracket - 360mm

Warnings

Not responsible for any damage caused by or when using this product. Please use at your own risk.

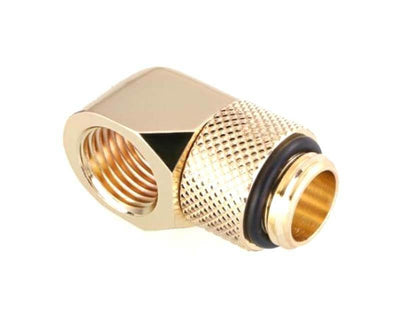

The Bykski Male to Female G 1/4in. 90 Degree Rotary Elbow Fitting is an easy solution when trying to change direction quickly with your loop. This adapter is great for redirecting tubing runs away from components at unconventional angles. The rotary function allows you to aim the connection in any desired direction 90 degrees from the mount.

Specifications

• Thread: G 1/4
• Material: Brass


Compatibility

• Loop: Non-Aluminum

Included Parts

• 1x Bykski G 1/4in. Male to Female 90 Degree Rotary Elbow Fitting

Warnings

Not responsible for any hardware damage. Use at your own risk.

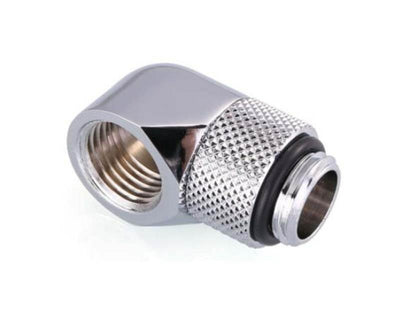

The Bykski Male to Female G 1/4in. 90 Degree Rotary Elbow Fitting is an easy solution when trying to change direction quickly with your loop. This adapter is great for redirecting tubing runs away from components at unconventional angles. The rotary function allows you to aim the connection in any desired direction 90 degrees from the mount.

Specifications

• Thread: G 1/4
• Material: Brass


Compatibility

• Loop: Non-Aluminum

Included Parts

• 1x Bykski G 1/4in. Male to Female 90 Degree Rotary Elbow Fitting

Warnings

Not responsible for any hardware damage. Use at your own risk.

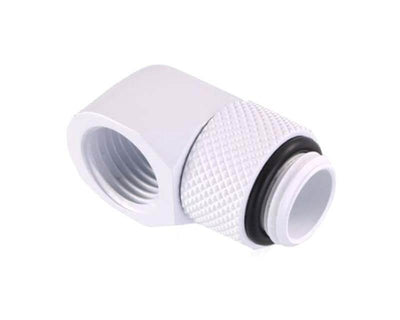

The Bykski Male to Female G 1/4in. 90 Degree Rotary Elbow Fitting is an easy solution when trying to change direction quickly with your loop. This adapter is great for redirecting tubing runs away from components at unconventional angles. The rotary function allows you to aim the connection in any desired direction 90 degrees from the mount.

Specifications

• Thread: G 1/4
• Material: Brass


Compatibility

• Loop: Non-Aluminum

Included Parts

• 1x Bykski G 1/4in. Male to Female 90 Degree Rotary Elbow Fitting

Warnings

Not responsible for any hardware damage. Use at your own risk.

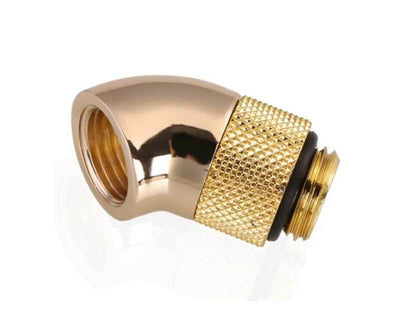

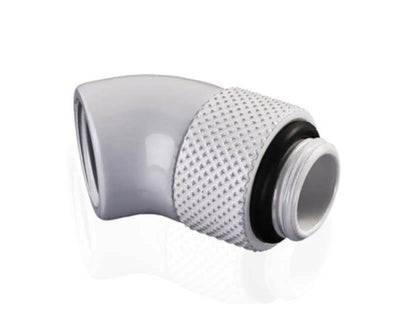

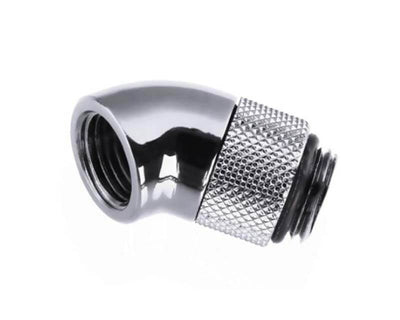

The Bykski Male to Female G 1/4in. 45 Degree Rotary Elbow Fitting is an easy solution when trying to change direction quickly with your loop. This adapter is great for redirecting tubing runs away from components at unconventional angles. The rotary function allows you to aim the connection in any desired direction 45 degrees from the mount.

Specifications

• Thread: G 1/4
• Material: Brass

Compatibility

• Loop: Non-Aluminum

Included Parts

• 1x Bykski G 1/4in. Male to Female 45 Degree Rotary Elbow Fitting

Warnings

Not responsible for any hardware damage. Use at your own risk.

The Bykski Male to Female G 1/4in. 45 Degree Rotary Elbow Fitting is an easy solution when trying to change direction quickly with your loop. This adapter is great for redirecting tubing runs away from components at unconventional angles. The rotary function allows you to aim the connection in any desired direction 45 degrees from the mount.

Specifications

• Thread: G 1/4
• Material: Brass

Compatibility

• Loop: Non-Aluminum

Included Parts

• 1x Bykski G 1/4in. Male to Female 45 Degree Rotary Elbow Fitting

Warnings

Not responsible for any hardware damage. Use at your own risk.

The Bykski Male to Female G 1/4in. 45 Degree Rotary Elbow Fitting is an easy solution when trying to change direction quickly with your loop. This adapter is great for redirecting tubing runs away from components at unconventional angles. The rotary function allows you to aim the connection in any desired direction 45 degrees from the mount.

Specifications

• Thread: G 1/4
• Material: Brass

Compatibility

• Loop: Non-Aluminum

Included Parts

• 1x Bykski G 1/4in. Male to Female 45 Degree Rotary Elbow Fitting

Warnings

Not responsible for any hardware damage. Use at your own risk.

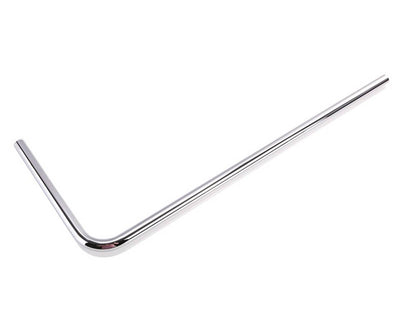

The Bykski Metal Rigid Tubing is a chrome plated copper material making it extemely durable. It has a seamless construction, which provides a smooth interior surface. It comes in an angled run that allows you to custom fit bends but cutter either end. The added metal in your system can't hurt bringing temperatures down in transition between components. By absorbing heat from the coolant the tube can dissipate this heat easily with any kind of average internal airflow in your chassis.

Features

• Polished surface
• Extra heat dissipation bonus

Specifications

• Temper Rating:Hard
• Material:Copper (chrome plated)
• Tube Size:12mm Inner Diameter / 14mm Outer Diameter
• Wall Thickness: 2mm
• Compatibility
• Fittings:any 14mm OD Rigid Fittings

Parts Included

• Sold Per Stick (an order quantity of 3 would result in a 3x pieces)

Warnings

This is an ADVANCED DIY product!
Not responsible for any damage caused by or when using this product. Please use at your own risk.

Installation

Cutting should be done with the proper tools. Failure to do so can result in nonuniform ends leading to leaking and failure to seal.

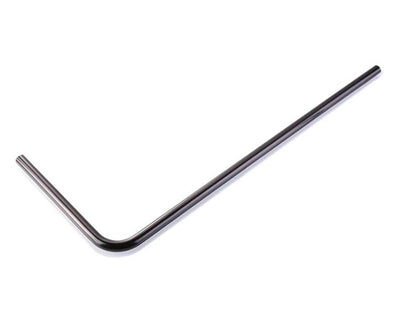

The Bykski Metal Rigid Tubing is a chrome plated copper material making it extremely durable. It has a seamless construction, which provides a smooth interior surface. It comes in an angled run that allows you to custom fit bends but cutter either end. The added metal in your system can't hurt bringing temperatures down in transition between components. By absorbing heat from the coolant the tube can dissipate this heat easily with any kind of average internal airflow in your chassis.

Specifications

• Temper Rating: Hard
• Material: Copper (black coated)
• Tube Size:12mm Inner Diameter / 14mm Outer Diameter
• Wall Thickness: 2mm
• Compatibility
• Fittings: any 14mm OD Rigid Fittings

Parts Included

• Sold Per Stick (an order quantity of 3 would result in a 3x pieces)

Warnings

This is an ADVANCED DIY product!
Not responsible for any damage caused by or when using this product. Please use at your own risk.

Installation

Cutting should be done with the proper tools. Failure to do so can result in nonuniform ends leading to leaking and failure to seal.

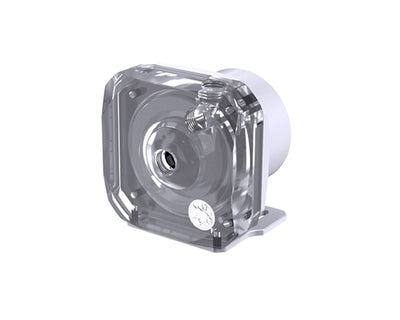

The Bykski PMS5 Liquid Cooling 12V Pump Motor is a high reliability, high pressure industrial pump, featuring PWM speed control. Like most other PMS5 pumps this reliability is afforded by the same unique design as the original pump, which contains only one moving part: the magnetically driven spherical impeller spins on a single ceramic bearing, thus extending the life of this pump beyond existing standards.

The pumps data and speed control is done using the PWM 4-pin connector.  By connecting this the pump speed can be controlled via the computers similar to a CPU fan speed.  This also allows the safety feature of auto shut down based on RPM feedback if available in your BIOS.

Features

• Sleeved Black/Black Cables
• Superior 12 Volts DC convenience: plugs into the computer power supply
• The high pressure capability of the PMS5 is particularly well adapted to high-flow systems

Specifications

• Power: 12V / TDP23W
• Voltage: 8V-24V
• Power Connector: 4-Pin Molex
• Speed Control/Data: 4-Pin PWM
• Working Temp: 45C at 4000RPM
• Max RPM: 4800
• Maximum head: 12.4 ft (3.8 m)
• Maximum discharge: ~396.26 GPH (1500 LPH)
• Top Material: PMMA
• Thread: G1/4
• Dimensions: 80mm x 83.5mm x 84.6mm

Compatibility

• Loop: Aluminum or Non-Aluminum

Included Parts

• 1x Bykski PMS5 Liquid Cooling 12V Pump - PWM Enabled
• 1x Top and Mounting System (Version 2)

Warnings

Do not run the pump dry. It is designed as self lubricating which means the fluid that the pump is designed to push/create flow is also used to lubricate the internal pump parts and you shouldn't run the pump without fluid for any reason. Running dry creates internal friction between the ceramic bearing and bearing housing and that heat can crack or melt the bearing housing very quickly. Running pumps dry (without fluid) immediately voids the warranty and replacements/refunds will not be issued. Not responsible for any hardware damage. Use at your own risk.
